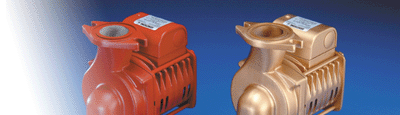

ARMflo E Series: Close Coupled Dry Motor Circulator
Overview
ARMflo E Series high efficiency circulators are perfect for heating or cooling applications such as Hot Water, Geothermal, Radiant Panel and Snow Melting in Large Residential and Light Commercial installations. The advanced motor technology and efficient hydraulic design of the E Series E10 and E11 yield an overall efficiency that’s up to 41% better than competitive pumps of similar power.
The E Series also uses a compact motor that’s 30% smaller than other dry motor circulators. Designed for extended durability and very quiet operation, the E10 and E11 circulators include the new EnviroSeal mechanical seal, which can be field-repaired in under 5 minutes, as well as permanently lubricated stainless steel bearings.
While the durability of the Armstrong E Series rivals that of traditional 3 piece circulators, the E Series will usually cost the same as, or less than, wet rotors of comparable power.
Design Features
Ultra Quiet Design:
No one wants to hear noisy pumps. Dynamic balancing of each ARMflo E Series circulator ensures quiet operation in residential and commercial installations.
Compact Efficiency:
Highly efficient dry motor design and hydraulics make E Series circulators up to 74% more efficient than competitive pumps of similar power! As well, the advanced motor design used in E Series circulators makes them up to 30% smaller than other dry motor circulators.
Smooth Operation Year-After-Year:
Permanently lubricated ball bearings will provide trouble-free operation for years.
High Head Application:
ARMflo E Series high efficiency circulators are perfect for heating or cooling applications such as Hot Water, Geothermal, Radiant Panel and Snow Melting in Large Residential and Light Commercial installations.
Technical Data (Model E11/E11B)
- Flow Range: 0 - 45 USgpm (0 - 2.8 L/s)
- Head Range: 0 - 31.9 feet (0 - 9.7 m)
- Motor: 120 V or 240 V, 1 Phase, 60 Hz
- Max. Fluid Temperature: 230ºF (110ºC)
- Max. Working Pressure: 150 psi (1034 kPa)
- Motor Power: 1/6 hp (125 W)
- Full Load Amp Draw: 2.0 A @ 120 V; 1.0 A @ 240 V
Typical Specifications
Furnish and install, as shown on the plans, Armstrong ARMflo E Series circulating pump model _________ with bronze (or cast iron) body. The pump shall be maintainable using an EnviroSeal silicon carbide mechanical seal, have a close coupled dry motor, with a capacity of _______ USgpm (L/s) against a total head of _______ ft (m). The pump shall be 120 V (or 240 V) / 1 Phase / 60 Hz, UL listed and CSA approved, and pumps with 1/12 hp or 1/6 hp motors shall have a minimum wire-to-water efficiency of 36 percent.
ARMflo E Series Circulators
