Armstrong

View our Product Catalog here.

Armstrong Pumps has pioneered an uncompromising range of products for customers in residential, commercial and industrial markets. From the very beginning, the Armstrong name has been a benchmark for quality in design, engineering and manufacturing.
Learn more...

Barnes Canada serves the diverse needs of diverse markets for fluid handling equipment throughout Canada. All of the CP&S brands - Barnes Pumps, Barnes Pressure Systems, Burks Pumps, Crown Pumps, Prosser Pumps, and Weinman Pumps - are sold and serviced through Barnes Canada. Learn more...

Series 1535

Overview

Design Features

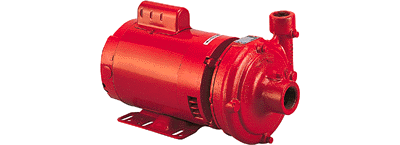

Foot-mounted, end-suction, close-coupled pump available in 1'' through 1-1/2'' sizes. Motor sizes 1/3 to 5 HP at 3500 RPM. Available in bronze-fitted construction with flows to 240 GPM at 115 feet. This back-pullout pump offers ease of service in a close-coupled design.

The pump can be mounted vertically or horizontally to provide maximum flexibility. Ball bearing design and standard internally flushed mechanical seal provide long, dependable service.

.

Applications

Cooling towers, refrigeration, general service and industrial.
