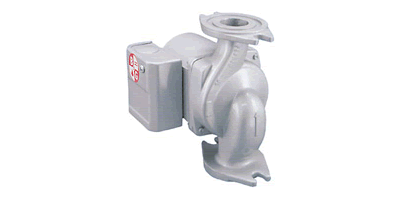

Stainless Steel SSF-22, SSF-12, SSF-9 Circulator
Overview
Design Features
- Maintenance-free, stainless steel pump body.
- Flanged, union or sweat models available.
- High starting torque provides dependable start-ups.
- Unique B&G DuraGlide Bearing System assures whisper-quiet, maintenance-free operation
- Standard, universal flange-to-flange dimensions
- Backed by B&G's representatives and a 3-year warranty--the best in the business
- DuraGlide Bearing System incorporates several components working together to eliminate seasonal freeze-up
- Low-watt, energy-conserving models
- Flanged and union system connection models are available
- Automatic Timer and Aquastat accessories are available.
Operating Data
-
Operating Data
- Maximum working pressure . . . . . . . 150 psi (10 bar)
- Maximum operating temperature . . . . . 230°F (110°C)
- Materials of Construction
- Pump Body . . . . . . . . . . . . . . . . . . .Stainless Steel
- Impeller . . . . . . . . . . . . . . . . . . . . . . . . Non-metalic
- Shaft . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .Ceramic
- Bearings. . . . . . . . .. . . . . . . .Double-Sintered Carbon
Applications
Residential or light commercial potable water or heating applications.
