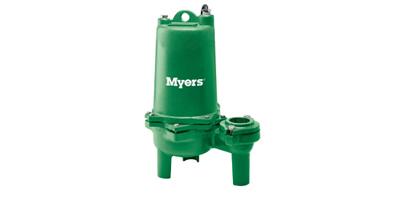

WHR5H-WHR20H Series -
2” Solids Handling Residential and Commercial Sewage and Effluent Pumps
Overview
Features and Benefits
- Higher heads for demanding applications
- Domestic wastewater and septic systems
- Light commercial sewage
- High-capacity fluid transfer
- ETL Listed
- 1/2, 1, 1-1/2 & 2 HP models
- Durable motor for long-lasting performance
- Oil-filled for cooler operation and constant bearing lubrication
- Single-phase PSC motors eliminate starting switches
- Recessed impeller reduces radial loads and increases bearing life
- Thermal overload protection with automatic reset
Product Capabilites
Product Capabilites
| Capacities: |
218 GPM |
825 LPM |
| Shut-Off Head: |
70 ft. |
20.9 m |
| Solids Handling: |
2 in. |
50.8 mm |
| Liquids Handling: |
raw sewage and sewage effluent |
| Intermittent Liquid Temp.: |
up to 140°F |
up to 60°C |
| Motor Electrical Data: |
1/2, 1, 1-1/2 & 2 HP, 3450 RPM,
208/230V, 1Ø, 60Hz, PSC;
208/230/460V, 3Ø, 60Hz |
| Acceptable pH Range |
6–9 |
Discharge, NPT:
|
2 in.
3 in. |
50.8 mm
76.2 mm |
Minimum Sump Diameter: Simplex
Duplex |
24 in.
30 in. |
61 cm
76 cm |
| Housing: |
cast iron |
| Volute Case: |
cast iron |
| Impeller: |
ductile iron, vortex |
| Power Cord: |
20 ft., 16/3, SJOW/SJOW-A, 1Ø
20 ft., 16/4, SJOW/SJOW-A, 3Ø |
Shaft Seal:
|
type 21, carbon & ceramic |

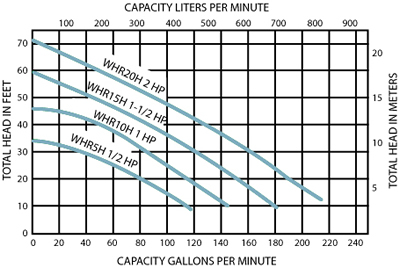

Product Performance Chart
