120 Volt Models Deep Vacuum Pumps
Part #
Motor
Free Air Displacement
(Liters/ min)
Intake Ports
(male flare)
Oil
Capacity†
Weight
HP RPM FLA
60 Hz
05-DV42
1/2 1725 7.5
1.5 CFM (42)
1/4"
865cc (30oz) 26.5 lbs
05-DV85
3 CFM (85)
1/4" × 3/8"
785cc (27oz)
30 lbs
05-DV142
5 CFM (142)
3/8" × 1/4" × 3/8" 660cc (23oz)
32 lbs
05-DV200
7 CFM (200)
3/8" × 1/4" × 3/8" 660cc (23oz)
30 lbs
05-DV285
10 CFM (285)
3/8" × 1/4" × 3/8" 705cc (24oz)
39 lbs
120/ 230 Volt Deep Vacuum Pumps
Part #
Motor
Free Air Displacement
(Liters/ min)
Intake Ports
(male flare)
Oil
Capacity†
Weight
HP RPM FLA 60 Hz
50 Hz
05-DV42-250
1/2 1425/ 1725 7.2/ 3.6
1.5 CFM (42) 1.25 CFM (35) 1/4"
865cc (30oz)
30 lbs
05-DV85-250
3 CFM (85)
2.5 CFM (71)
1/4" × 3/8"
785cc (27oz)
32 lbs
05-DV142-250
5 CFM (142) 4.2 CFM (119) 3/8" × 1/4" × 3/8" 660cc (23oz)
34 lbs
05-DV200-250
7 CFM (200) 5.8 CFM (167) 3/8" × 1/4" × 3/8" 660cc (23oz)
32 lbs
05-DV285-250
10 CFM (285) 8.3 CFM (237) 3/8" × 1/4" × 3/8" 705cc (24oz)
40 lbs
† Top of oil level line while pump is running.
• Operating temperature: 60°C ±10°C (150°F ±18°F)
Vacuum Pumps
Features
• 2 Stage, direct drive.
• 25 micron* field tested
(Thermister gauge reading).
• Check valve prevents oil
backflow during power failure.
• Low profile rocker switch.
• 10' power cord.
• Completely field repairable.
* One micron on a U-tube manometer
25,400 microns = 1".
Blank-Off
Isolation Valve
1/4 turn On/ Off.
Non-restrictive flow
pattern with ball
valve design.

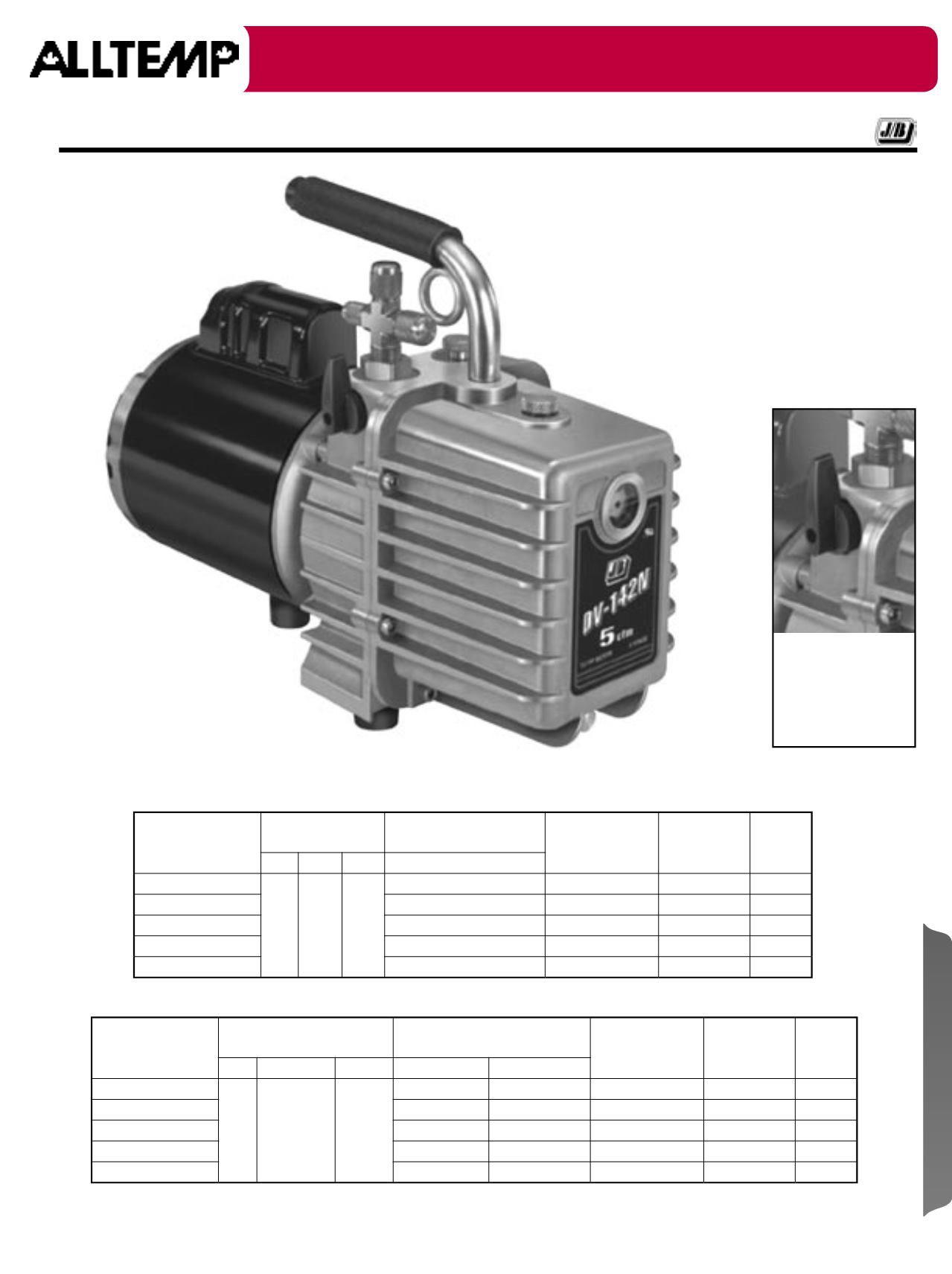

05-DV142
Illustrated
Break-Resistant
Steel Handle With
Cushioned, Non-Slip
Cool-Grip.
1/2 HP, Capacitor Start,
Thermal Overload
Protected Motor.
Lift Loop.
All Brass
Fittings.
All Metal
Construction.
Housing Protected
Drain Valve.
Finned Aluminum Housings For
Lower Operating Temperature.
Large
Sight-Glass
Vacuum Pumps
