Rotation determined opposite shaft end
Double shaft determined at lead end
Shaft length measured from hub
face to shaft end
Motors

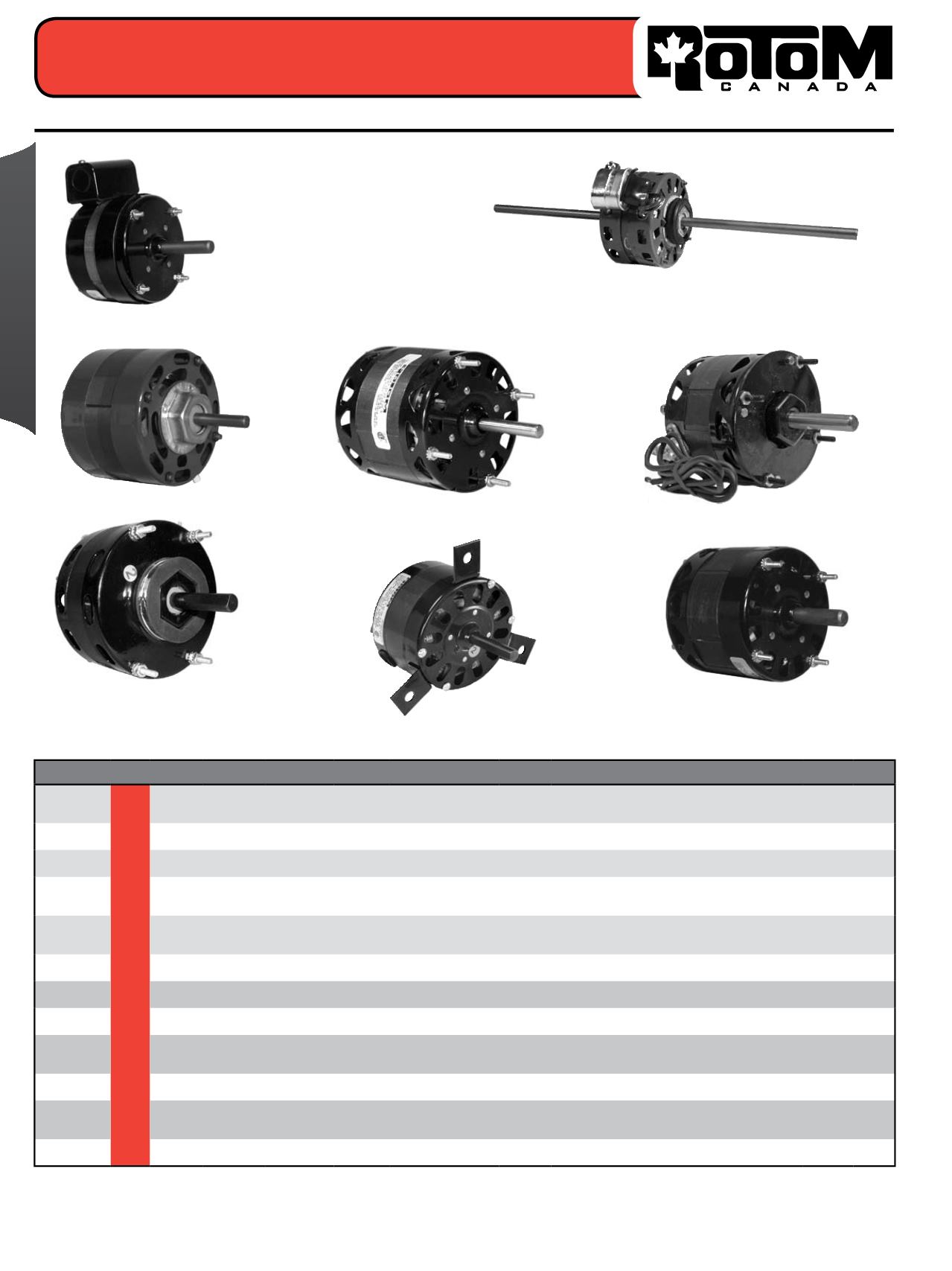

4.1" Motors
4.1" Motors
115, 208/230 volt - 1550 RPM
Sleeve Bearing - Shaded Pole & P.S.C - Single & Double Shaft.
Fig.1
R2609
R2612
R2603
R2602
Fig.2
R2671
Fig.3
R2657
R2658
Fig.4
R2614
Fig.5
R2817
Fig.6
R2811
Fig.7
R731
Fig.8
R2604
Part # HP Amps Volts Spd/RPM Rot.
Shaft
Body
Comment
Encl. Fig.
R2609
1/30
1.21 115 1/1550 C.W.
2.4"x1/2"
3.00"
UE 009, FRANKLIN 75009, INTERCITY
c/w CONDUIT BOX
T.E.
2
R2612
1/30
1.21 115 1/1550 C.C.W.
2.4"x1/2"
3.00"
UE 010, INTERCITY c/w CONDUIT BOX T.E.
3
R2602
1/23
1.30 115 1/1550 C.C.W.
2.2"x1/2"
3.08"
REVERSOMATIC
OPEN
1
R2603
1/23
1.30 115 1/1550 C.W.
2.2"x1/2"
3.08"
REVERSOMATIC DK260 - DB200,
(268 CFM), FRANKLIN 75003
OPEN
1
R2817
1/20
1.60 115 1/1550 C.C.W.
2.8"x1/2"
3.10"
KEEPRITE 28175, FASCO 7108-2217,
7108-7027
OPEN
1
R2811
1/20
2.10 115 1/1050 C.C.W.
2.5"x1/2"
2.60"
FASCO 7151-2253, KEEPRITE 28110 OPEN
4
R2657
1/15
1.20 230 1/1550 C.W.
2.4"x3/8"
3.40"
KEEPRITE 81335
OPEN
5
R2658
1/15
2.30 115 1/1550 C.W.
1.8"x3/8"
3.40"
KEEPRITE 81356
OPEN
6
R731
1/15
2.35 115 2/1550 C.C.W. 2.3"x3/8"x2.3" 3.10"
122958,123655,170621,71108, 90013,
90248, 96962, SM703
OPEN
4
R2614
1/12
2.25 115 1/1550 C.C.W.
2.5"x3/8"
4.00"
DELHI FAN MOTOR
OPEN
3
R2671
1/10
0.60 208/230 3/1610 C.C.W. 9.4"x1/2"x9.3" 3.09"
CHROMALOX INCREMENTAL
807-101, UE DE2E106N Cap Inc.
OPEN
7
R2604
1/10
2.65 115 1/1550 C.W.
2.2"x1/2"
3.65"
REVERSOMATIC DB300
OPEN
8
