47
Rotation determined opposite shaft end
Double shaft determined at lead end
Shaft length measured from hub
face to shaft end

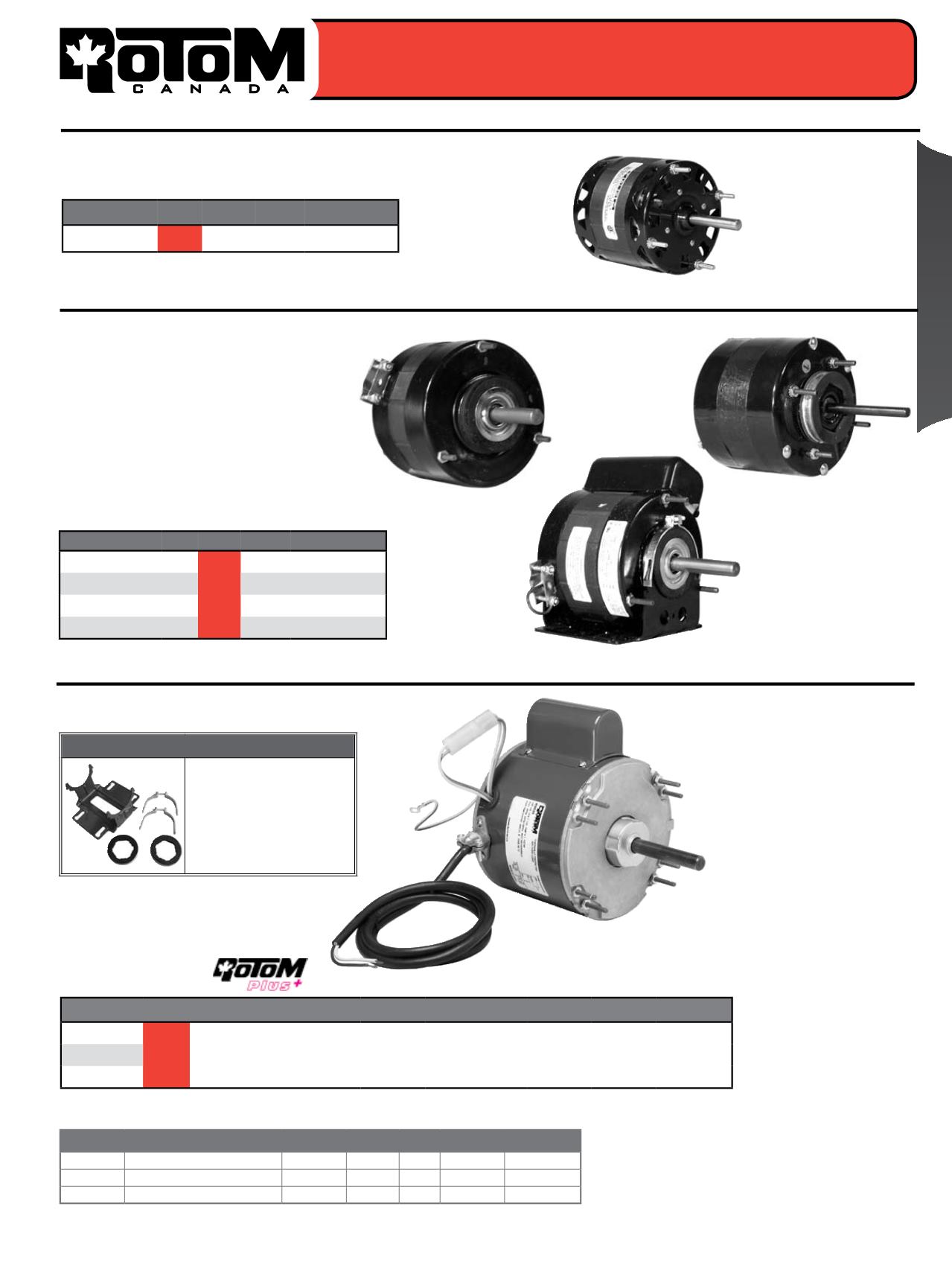

Motors
Unit Heater / Oil Burner Motors
Unit Heater
5.0" Diameter
- OEM Replacement
OEM Direct Replacements - Totally Enclosed - 115 Volts
4.0" Diameter Electric Unit Heaters
Comment:
Direct Replacement for Reznor,
Luxaire,
*
Lennox P8-6920, *Keeprite
54028, A0516, A2160, E62788, E62862,
E62A15, *Robbin Myers.
Fig. A
Lennox *
ICP
Keeprite
Fig. B
Reznor
Fig. C
Robbin Myers
Reznor
Optional Base
UH-UHK
Optional Mounting Base For
UH- Series Unit Heaters.
Includes Base, Brackets &
Resilient Rings.
5.5" Diameter Unit Heater Motors
Features
• 48 Frame
• 5.5" Diameter
• Totally Enclosed
• Mounting: 4/8 Stud.
Pattern
• 60 Hz
• Ball Bearing
• Shaft: 1/2" × 3.4"
• Reversible
• Permanent Split
Capacitor (P.S.C.)
• 40" Black Water
Resistant SJOW Cord
• 45°C (113°F) Ambient
• Insulation Class B
• Thermally Protected
Comment
Rotom
AO Smith
Emerson Fasco GE Marathon UE
UH-9034
UH1016, US1016, US1016NB 9034
D834 3206 X302, X306 177, 749
UH-9035
UH1026, US1026, US1026NB 9035
D734 3208 X303, X307 566, 734, 750
UH-9036
UH1036, US1036, US1036NB 9036
D732 3212 X304, X308 183, 751
UH-9035
Illustrated
Ball Bearing
Unit Heater
Part # HP Volts Amps Cap.
RPM Rotation A Dim. Bearing Shaft
UH-9034
1/6
115 2.4 4/370 1/1075 REV.PLUG 4.55"
Ball
1/2"×3.4"
UH-9035
1/4
115 4.1 5/370 1/1075 REV.PLU 4.52"
Ball
1/2"×3.4"
UH-9036
1/3
115 5.0 7.5/370 1/1075 REV.
4.52"
Ball
1/2"×3.4"
Capacitor Included
Part # Fig. HP RPM Type
R6920
*
A
1/15
1050 SP
R2360
B
1/15
1050 SP
R2615
B
1/8
1050 SP
R2380
C
1/8
1075 PSC/INC
Part # HP Amps RPM Shaft
R2614
1/12
2.25 1550 2.0" × 3/8"
Comment: Magnetek #78
115 Volt - Open - CCW Lead End Rotation
