SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Submersible Non-Clog Pumps
39
C
Professional Plumbing
Testing is performed with
water specific gravity of 1.0
@ 68˚F (20˚C), other fluids
may vary performance

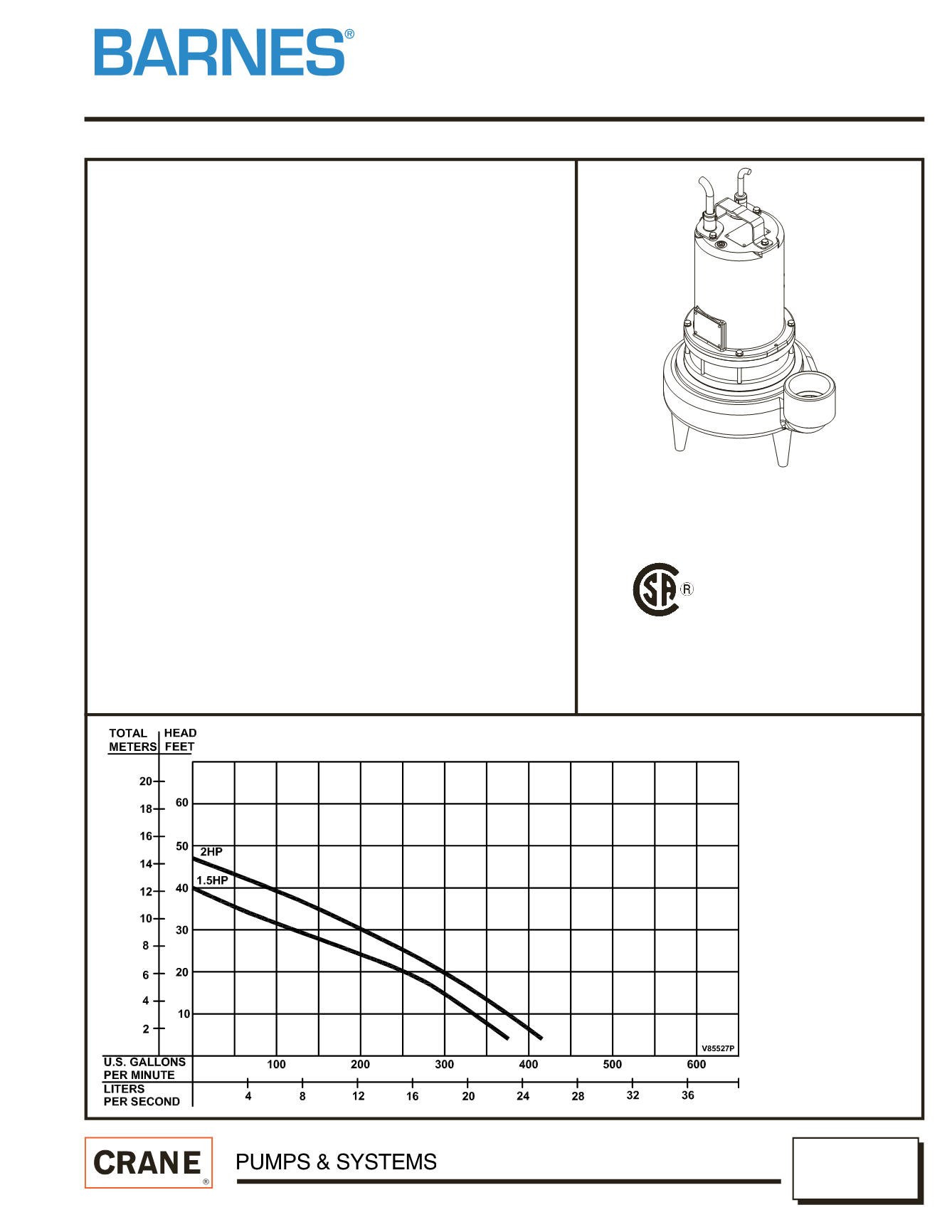

Series 3SE-DS
2½" Spherical Solids Handling
Double Seal
Series: 3SE-DS
1.5 & 2HP, 1750RPM, 60Hz
DISCHARGE ...................................
3” NPT, Vertical
LIQUID TEMPERATURE ................
104°F (40°C) Continuous
VOLUTE.............................................
Cast Iron ASTM, Class 30
MOTOR HOUSING ............................
Cast Iron ASTM, Class 30
SEAL PLATE ....................................
Cast Iron ASTM A-48, Class 30
IMPELLER:
Design
......................
2 Vane, Semi-open with pump out vanes on
back side. Dynamically balanced, ISO G6.3
Material
.....................
Cast Iron, Class 30
SHAFT
..............................................
416 Stainless Steel
SQUARE RINGS................................
Buna-N
HARDWARE ......................................
300 Series Stainless Steel
PAINT .................................................
Air Dry Enamel
SEAL:
Design
.......................
Tandem Mechanical, Oil filled reservoir
Material
......................
Carbon/Ceramic/Buna-N
Hardware -300 Series Stainless
CORD ENTRY....................................
30 ft. (9.1m) Cord. Quick Connect custom
molded for sealing and strain relief
UPPER BEARING..............................
Single Row, Ball, Oil lubricated
LOWER BEARING.............................
Single Row, Ball, Oil lubricated
MOTOR:
Design
.......................
NEMA L -Single Phase, NEMA B -Three phase
Torque Curve, Oil Filled, Squirrel Cage Induction
Insulation
....................
Class B
SINGLE PHASE.................................
Permanent Split Capacitor (PSC)
Includes Overload Protection in Motor
THREE PHASE..................................
200-230/460 is Tri-Voltage. 575. Requires overload
protection to be included in control panel
MOISTURE SENSOR ........................
Normally Open, Requires relay in control Panel
TEMPERATURE SENSOR ................
Normally Closed, Requires relay in control
Panel. For three phase units ONLY.
OPTIONAL EQUIPMENT ................
Seal Material, Impeller Trims, Additional cord.
ACCESSORIES .................................
Break Away Fitting (BAF)
Check Valve
Control Panel
DESCRIPTION:
SUBMERSIBLE NON-CLOG SEWAGE PUMP DESIGNED
FOR TYPICAL RAW SEWAGE APPLICATIONS
7/12
CSA 108 - File No. L16567
