Basins & Accessories
9
F
Professional Plumbing
1.25" - 3" Break Away Fitting
With or Without Check Valve
Standard & Non-Sparking
Specifications:

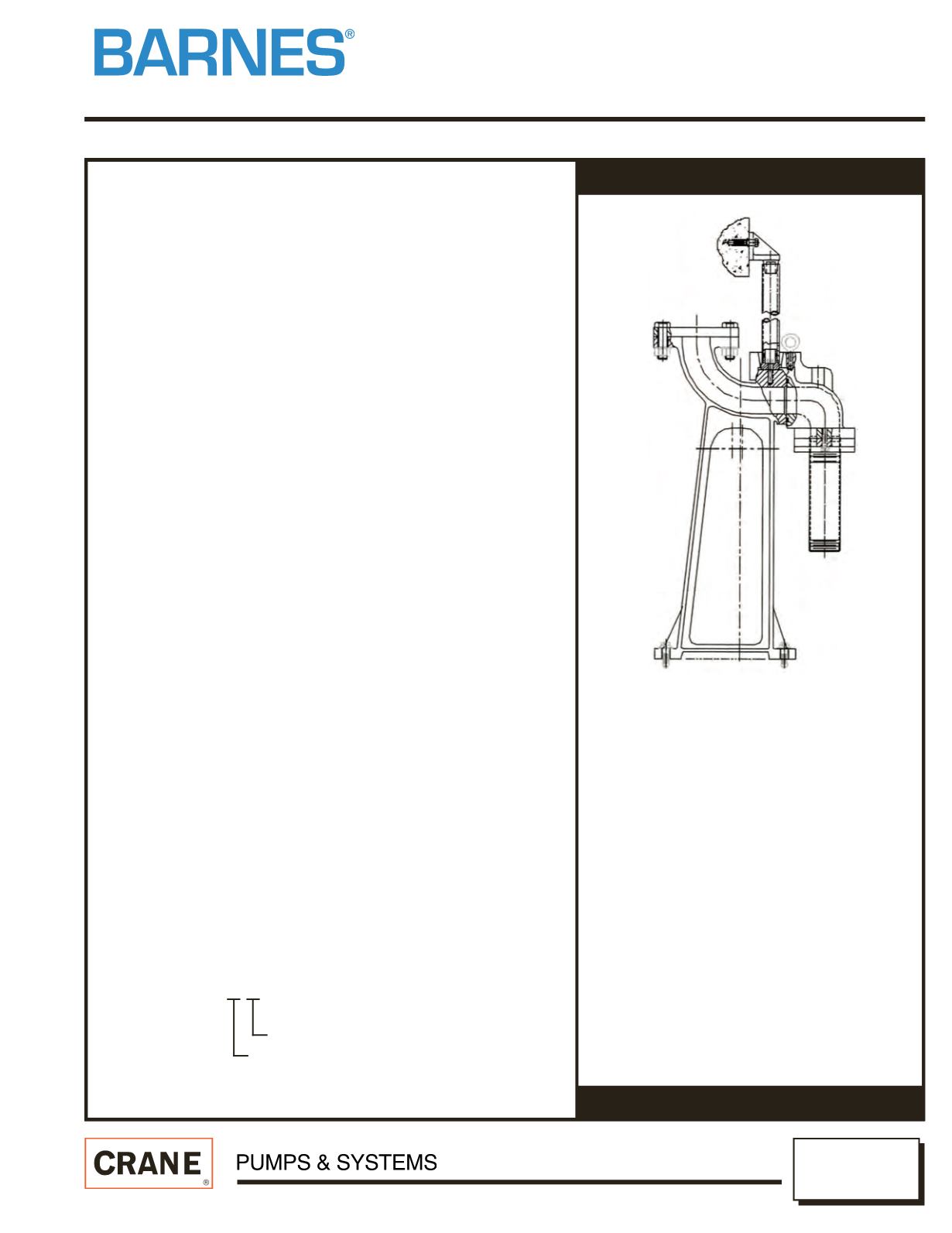

Each BAF break away fitting consists of a cast iron base elbow which
is bolted to the floor of the wet well, lower and upper guide rail supports
and a cast iron moveable elbow with a sealing plate and o-ring. The
discharge flange on the elbow base (ANSI B16.1) will mate with a
standard 125lb. companion flange and gasket (supplied). The pump
is connected to the moveable elbow though a stainless steel nipple
supplied with each assembly.
The guide rails (supplied by customer) are attached to the base elbow
at the lower end and a pipe spacer support bracket at the upper end.
The guide rails are set in place by sliding the pipe over a stainless steel
plug. Each plug has an o-ring to reduce noise and vibration. The guide
rails serve only as a guide as they carry none of the pump weight. 1"
(25mm) schedule 40 galvanized steel pipes should be used for guide
rails.
An optional intermediate guide rail bracket is recommended for depths
of 13 feet (4m) or more. See page 2.
The BAF’s, 1212, 1220 & 2020 are for pumps up to 200 lbs (91kg)
which do not generate in excess of 150 ft. TDH (45 Meters).
The BAF's, 2030 & 3030 is for pumps up to 250 lbs (114kg) which do not
generate in excess of 150 ft. TDH (45 Meters).
One break away fitting is required per pump. (The S.S. Lifting bridle is
included.)
Assemblies DO NOT include Pump, Discharge piping, Guide Rails,
Lifting Chain, nor Gate Valve with Handle.
These items must be purchased separately.
Specifications: With Check Valve "CV" Series
In addition to standard features listed above, a commercially available
ball Check Valve is supplied with each model. The valve is installed
between the pump discharge flange and the inlet flange on the
moveable elbow.
Specifications: Non-Sparking "NS" Series
The "NS" series is similar in design to the standard version except it
has a Bronze Moveable Elbow to prevent sparking.
Model Key: BAF - 1212NS
12 = 1¼"
20 = 2"
Customer Connection
30 = 3"
Pump Connection
For Submersible Sump, Sewage, Effluent & Grinder Pumps.
DESCRIPTION:
THE BREAK AWAY FITTING IS DESIGNED TO
ALLOW THE SUBMERSIBLE PUMP TO BE
INSTALLED OR REMOVED WITHOUT REQUIRING
PERSONNEL TO ENTER THE WET WELL.
Models: Without Check Valve
STD P/N
"NS" P/N
127300
BAF - 1212
127303
127301
BAF - 1220
127311
127302
BAF - 2020
127312
127306
BAF - 2030
127305
127304
BAF - 3030
127314
Models: With Check Valve
STD P/N
"NS" P/N
127307
BAF - 1212CV 127310
127308
BAF - 1220CV 127313
127309
BAF - 2020CV 127315
8/10
