Sub-Cooling Heat Exchangers - Standard
Sub-Cooling Heat Exchangers - Deluxe
Particularly Suited For Suction Cooled Compressor Applications!
• Quality and high efficiency at low competitive prices.
• Particularly suited for suction cooled compressor applications
• All copper construction
• Special expansion process provides positive contact between tube & body
• Fittings are sized for standard units from 1⁄4 to 10 HP eliminating the need for adapter fittings
Maximum Heat Transfer Efficiency
• Designed to provide a maximum of heat transfer efficiency with a
minimum of pressure drop.
• These models are conservatively rated in horsepower and therefore
easy to select for a particular application.
• Brass and copper construction through 3 HP (larger models are heavy
gauge steel)
• Easy installation - connection sizes match liquid and suction lines of
standard units - fittings are in the end caps and lines remain parallel
• 100% leak tested under high pressure
Standard Sub-Cooling Heat Exchangers
Part #
HP
Overall
Length
Shell
O.D.
Liquid Line
Opening
Suction Line
Opening
Weight
(lbs.)
47-BH33
1/4 & 1/3
8"
7/8"
1/4"
3/8"
0.6
47-BH50
1/2
11"
1/2"
0.8
47-BH75
3/4
14"
5/8"
1.0
47-BH100
1
15"
3/8"
1.5
47-BH150
1 1/2
11"
1 3/8"
7/8"
2.0
47-BH200
2
13"
2.0
47-BH300
3
15"
1/2"
1 1/8"
2.1

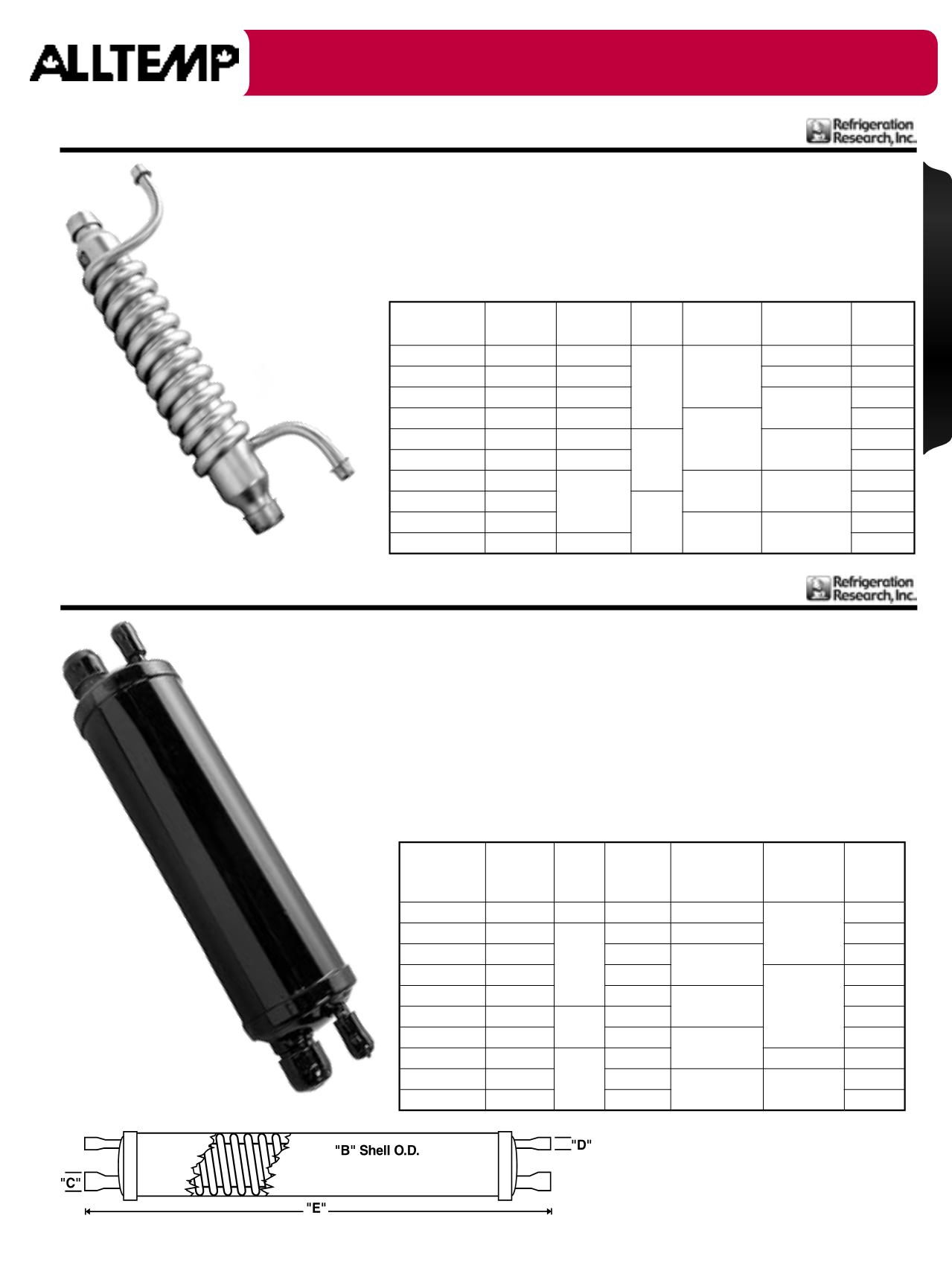

47-BH500
5
2"
2.3
47-BH750
7 1/2
5/8"
1 5/8"
2.5
47-BH1000
10
18"
2.7
UL & cUL Listed (File # SA6300)
Deluxe Sub-Cooling Heat Exchangers
Part #
HP
"B"
Shell
O.D.
"E"
Overall
Length
"C"
Suction Line
Opening
"D"
Liquid Line
Opening
Weight
(lbs.)
47-H33
1/4 & 1/3 1 1/4"
8 5/8"
3/8"
1/4"
0.8
47-H50
1/2
2"
10"
1/2"
1.3
47-H75
3/4
12 1/8"
5/8"
1.7
47-H100
1
13 1/8"
3/8"
1.9
47-H150
1 1/2
17 3/8"
7/8"
2.5
47-H200
2
3"
13 1/4"
3.1
47-H300
3
15 1/4"
1 1/8"
3.8
47-H500
5
5"
14 3/8"
1/2"
7.0
47-H750
7 1/2
15 5/8"
1 5/8"
5/8"
9.0
47-H1000
10
18 5/8"
11.0
UL & cUL Listed (File # SA6300)
47-BH500
