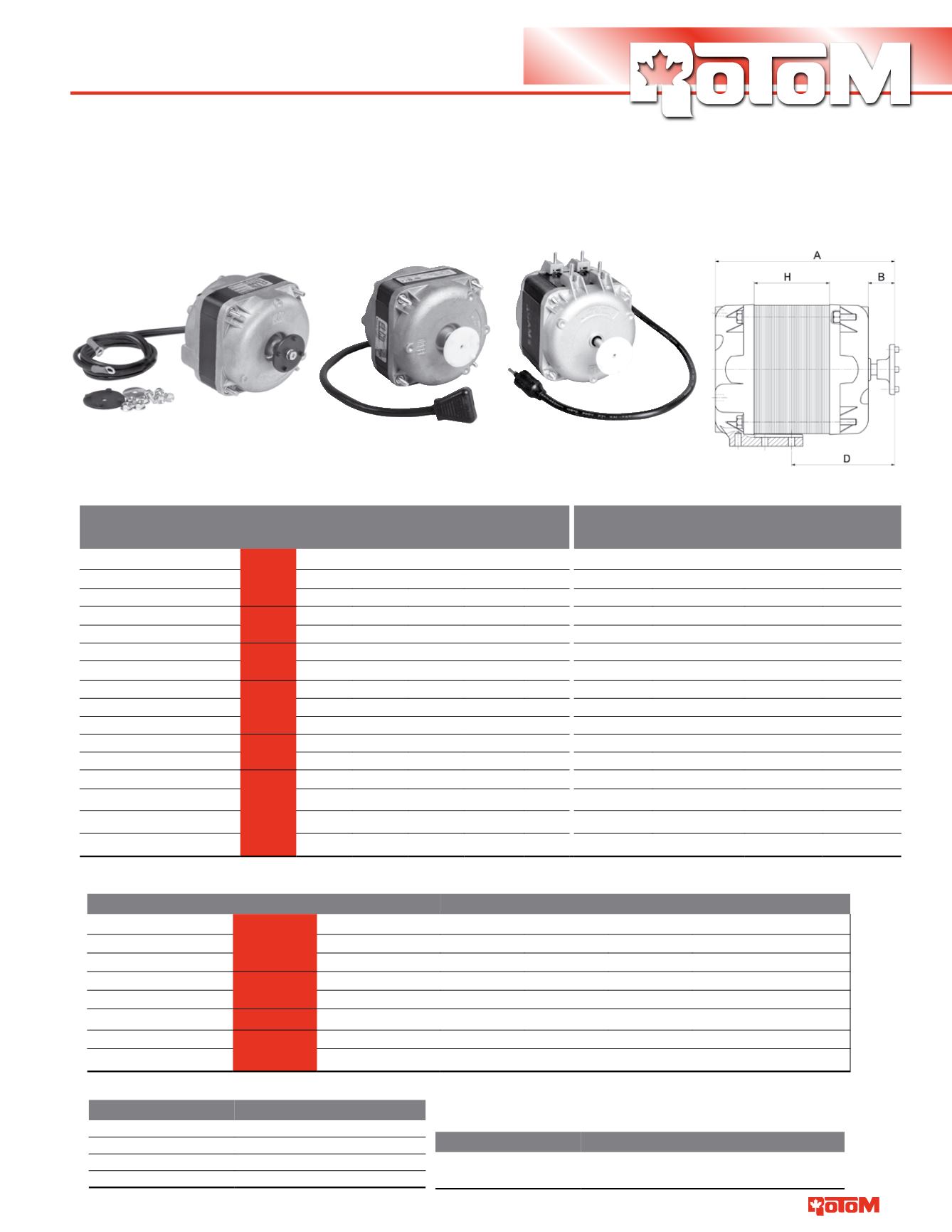

Motors Are Sleeve Bearing Unless Indicated - Rotation Determined Opposite Shaft End (Double Shaft Determined By Lead End)
Fan Blades
Part #
Motor Diameter: mm (")
Pitch Blades Application Construction
EC-4VEA012
4 & 5 W
154 (6.06")
28°
5
Suction
Plastic
EC-4012309
154 (6.06")
19°
5
Suction
Aluminium
EC-4012543
172 (6.77")
28°
5
Blower
Aluminium
EC-4VEA009
6 & 9 W
200 (7.87")
28°
5
Suction
Plastic
EC-4VEA010
200 (7.87")
34°
5
Suction
Plastic
EC-4VEA013
9 W
230 (9.05")
25°
5
Suction
Plastic
EC-4VEA006
16 W
230 (9.05")
31°
5
Suction
Plastic
EC-4VEA007
254 (10.0")
28°
5
Suction
Plastic
Fan Guards
Part #
Description
EC-1055223
Plastic, 7.87" Dia.
EC-1055224
Plastic, 10" Dia.
EC-1055318
Metal, 9.05" Dia
EC-1055303
Metal, 10" Dia.
Plastic Brackets
Part #
Description
EC-EUBKT01
Bracket for US style Elco Motors
115 & 230 Volt
Part #
Watts HP RPM Volts Amps Prot.
Dimensions: mm (")
H
A
B
D
EC-4W115
4
1/185 1550 115
0.36 Imp.
13 (.51")
71.5 (2.82")
12.5 (.49")
42 (1.65")
EC-4W115V835
1/185 1550 115
0.40 TH.
13 (.51")
71.5 (2.82")
17 (.68")
42 (1.65")
EC-4W230
1/185 1550 230
0.18 Imp.
13 (.51")
71.5 (2.82")
12.5 (.49")
42 (1.65")
EC-5W115
5
1/150 1550 115
0.40 TH.
13 (.51")
71.5 (2.82")
12.5 (.49")
42 (1.65")
EC-5W230
1/150 1550 230
0.20 TH.
13 (.51")
71.5 (2.82")
12.5 (.49")
42 (1.65")
EC-6W115
6
1/125 1550 115
0.41 Imp.
20 (.79")
77.5 (3.05")
12.5 (.49")
48 (1.89")
EC-6W230
1/125 1550 230
0.20 Imp.
20 (.79")
77.5 (3.05")
12.5 (.49")
48 (1.89")
EC-9W115
9
1/83 1550 115
0.58 TH.
20 (.79")
77.5 (3.05")
12.5 (.49")
48 (1.89")
EC-9W115V834
1/83 1550 115
0.58 TH.
20 (.79")
77.5 (3.05")
17 (.68")
48 (1.89")
EC-9W230
1/83 1550 230
0.35 TH.
20 (.79")
77.5 (3.05")
12.5 (.49")
48 (1.89")
EC-16W115
16
1/47 1550 115
1.0
TH.
30 (1.18")
91.5 (3.6")
16 (.63")
62 (2.44")
EC-16W230
1/47 1550 230
0.5
TH.
30 (1.18")
91.5 (3.6")
16 (.63")
62 (2.44")
EC-34W115
34
1/20 1550 115
1.6
TH.
45 (1.77")
106.5 (4.19")
15.5 (.61")
61 (2.4")
EC-34W115V1543
1/20 1550 115
1.6
TH.
45 (1.77")
106.5 (4.19")
33 (1.3")
61 (2.4")
EC-34W230
1/20 1550 230
0.8
TH.
45 (1.77")
106.5 (4.19")
15.5 (.61")
61 (2.4")
EC-34W230V1542
1/20 1550 230
0.8
TH.
45 (1.77")
106.5 (4.19")
33 (1.3")
61 (2.4")
Notes: Imp. = Impedance. - TH. = Thermal Protection
Features
• Shaded pole
• 4 Pole
• Totally Enclosed
• 50/60 Hz
• Long Life Lubricated Sintec Sleeve-Bearings
• Duty: Continuous Air-over. Operation: All Angle
• Rotation: CW Opposite Shaft End
• Cord: 21"/23" Lead Length With #10 Ring Studs
• Mounting: 1 Foot, Front Shroud, Tapped Rear 3-Hole
• Included: Nuts, Screws & Fan Blade Adapter
SLEEVE
BEARING
RefrigerationMotors
EC-34W115V1543
EC-34W230V1542
Special mounting, cord/plug and
shaft/hub length for Ref Plus -
RMT0004, RMT0005
EC-4W115V835
EC-9W115V834
Special cord/plug and shaft/hub
length for Arneg -
34410000, 34410001
