SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company

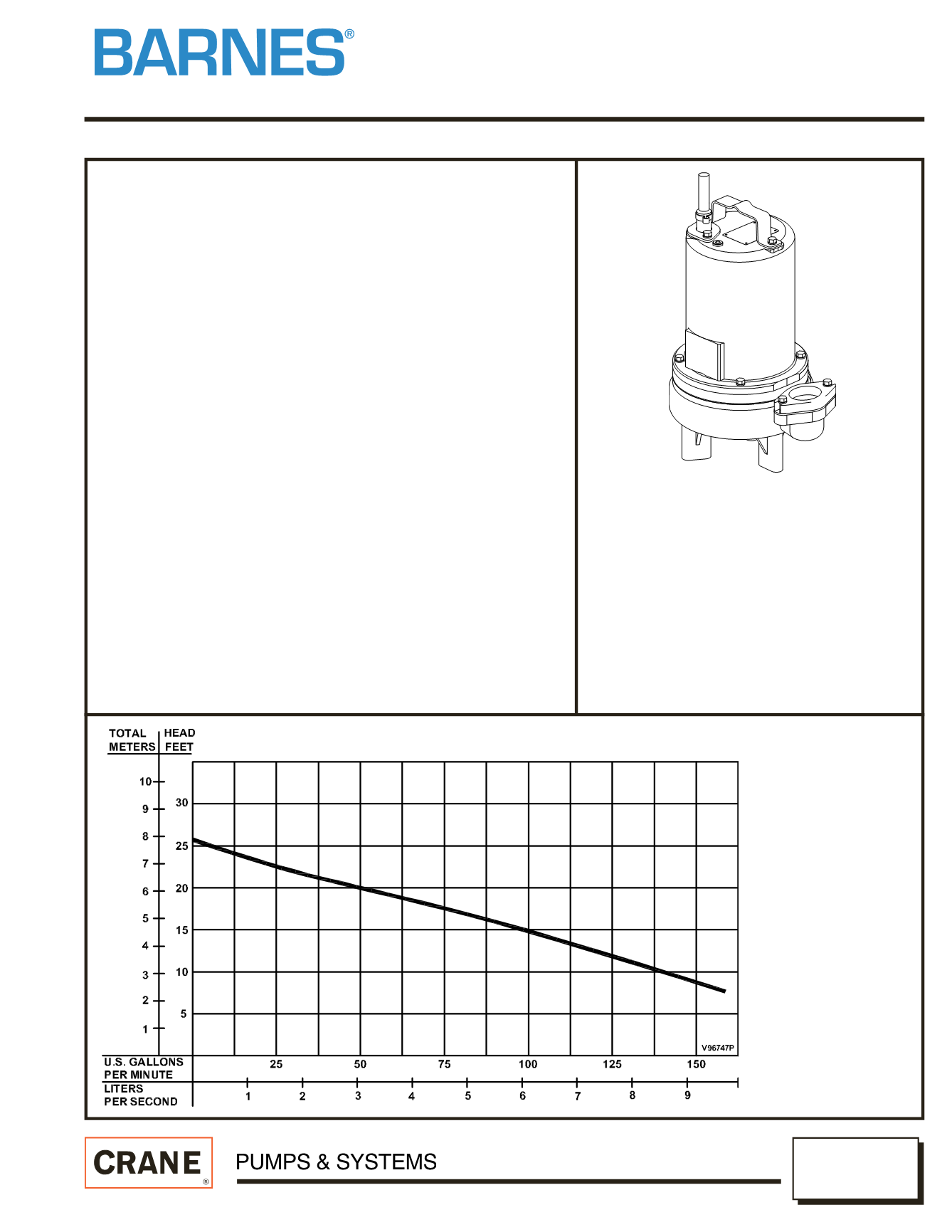

Submersible Non-Clog Pumps
11
C
Professional Plumbing
6/10
Testing is performed with
water specific gravity of 1.0
@ 68˚F (20˚C), other fluids
may vary performance
Series SE-HT
2" Spherical Solids Handling
High Temperature - Manual & Automatic
Series: SE
(SE51HT & SE52HT)
.5 HP, 1750RPM, 60Hz
DISCHARGE ...................................
2” NPT, Female, Vertical, Bolt-on Flange
LIQUID TEMPERATURE ................
200°F (98°C) Continuous
VOLUTE.............................................
Cast Iron ASTM A-48, Class 30
MOTOR HOUSING ............................
Cast Iron ASTM A-48, Class 30
SEAL PLATE ....................................
Cast Iron ASTM A-48, Class 30
IMPELLER:
Design
......................
2 Vane, open, with pump out vanes on
back side. Dynamically balanced, ISO G6.3
Material
.....................
Cast Iron ASTM A-48, Class 30
SHAFT
..............................................
416 Stainless Steel
SQUARE RINGS................................
Buna-N
HARDWARE ......................................
300 Series Stainless Steel
PAINT .................................................
Air Dry Enamel
SEAL:
Design
.......................
Single Mechanical
Material
......................
Carbon/Ceramic/Buna-N
Hardware -300 Series Stainless
CORD ENTRY....................................
15 ft. (5m) Cord with plug on 120 & 240 Volt
Quick connect custom molded for sealing and
strain relief
UPPER BEARING..............................
Single Row, Ball, Oil lubricated
LOWER BEARING.............................
Single Row, Ball, Oil lubricated
MOTOR:
Design
.......................
NEMA L -Single Phase Torque Curve
Oil Filled, Squirrel Cage Induction
Insulation
....................
Class F
SINGLE PHASE.................................
Includes Overload Protection in Motor
LEVEL CONTROL ............................. "A" -
Wide Angle, PVC, Mechanical, 15 ft (5m)
cord with Piggy-Back Plug, N/O
"AU"-
Wide Angle, Polypropylene, Mechanical,
N/O Integral to pump. ON and OFF Points are
adjustable
OPTIONAL EQUIPMENT ................
Seal Material, Impeller Trims, Additional cord,
*Inlet Strainer
ACCESSORIES .................................
Break Away Fitting (BAF)
Check Valve
Control Panel
(* 3/4" Spherical solids handling with optional inlet strainer.)
DESCRIPTION:
SUBMERSIBLE NON-CLOG SEWAGE PUMP DESIGNED
FOR
HIGH TEMPERATURE
RAW SEWAGE
APPLICATIONS
