SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company

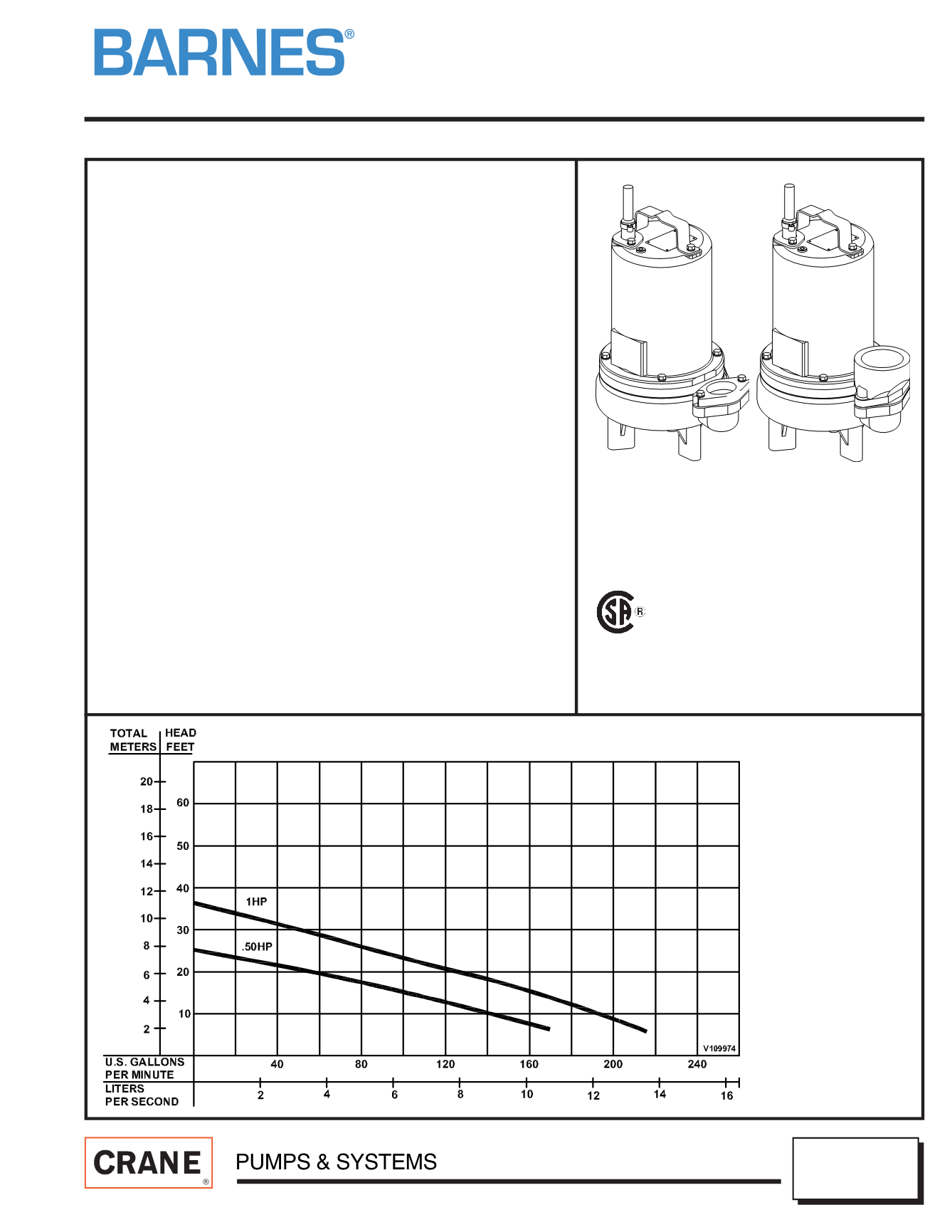

Submersible Fountain Pumps
5
H
Professional Plumbing
4/04
Testing is performed with
water specific gravity of 1.0
@ 68˚F (20˚C), other fluids
may vary performance
Series SF & 3SF-L
DISCHARGE:
SF Series
....................
2” NPT, Female, Vertical, Bolt-on Flange
3SF Series
..................
3" NPT, Female, Vertical, Bolt-on Flange
LIQUID TEMPERATURE ................
104°F (40°C) Continuous
VOLUTE.............................................
Cast Iron ASTM A-48, Class 30
MOTOR HOUSING ............................
Cast Iron ASTM A-48, Class 30
SEAL PLATE ....................................
Cast Iron ASTM A-48, Class 30
IMPELLER:
Design
......................
2 Vane open, with pump out vanes on back
side. Dynamically balanced, ISO G6.3
Material
......................
Cast Iron ASTM A-48, Class 30
SHAFT
..............................................
416 Stainless Steel
SQUARE RINGS................................
Buna-N
HARDWARE ......................................
300 Series Stainless Steel
PAINT .................................................
Air Dry Enamel
SEAL:
Design
.......................
Single Mechanical
Material
......................
Silicon/Silicon/Buna-N
Hardware -300 Series Stainless
CORD ENTRY....................................
15 ft. (5m) Cord with plug on 120 Volt
Quick Connect, Custom Molded for sealing
and strain relief
UPPER BEARING..............................
Single Row, Ball, Oil Lubricated
LOWER BEARING.............................
Single Row, Ball, Oil Lubricated
MOTOR:
Design
.......................
NEMA L Torque curve, Oil Filled, Squirrel cage
Induction
Insulation
....................
Class B
SINGLE PHASE.................................
Permanent Split Capacitor (PSC).
Includes thermal overload protection in motor
OPTIONAL EQUIPMENT...................
Seal Material, Additional cord and
Impeller trims
Series:
SF - .5HP, 1750RPM, 60Hz
3SF-L - 1HP, 1750RPM, 60Hz
DESCRIPTION:
THESE PUMP ARE SPECIALLY DESIGNED FOR USE IN
DRAMATIC, DECORATIVE WATER DISPLAYS
3SF-L 1 HP
SF .5 HP
