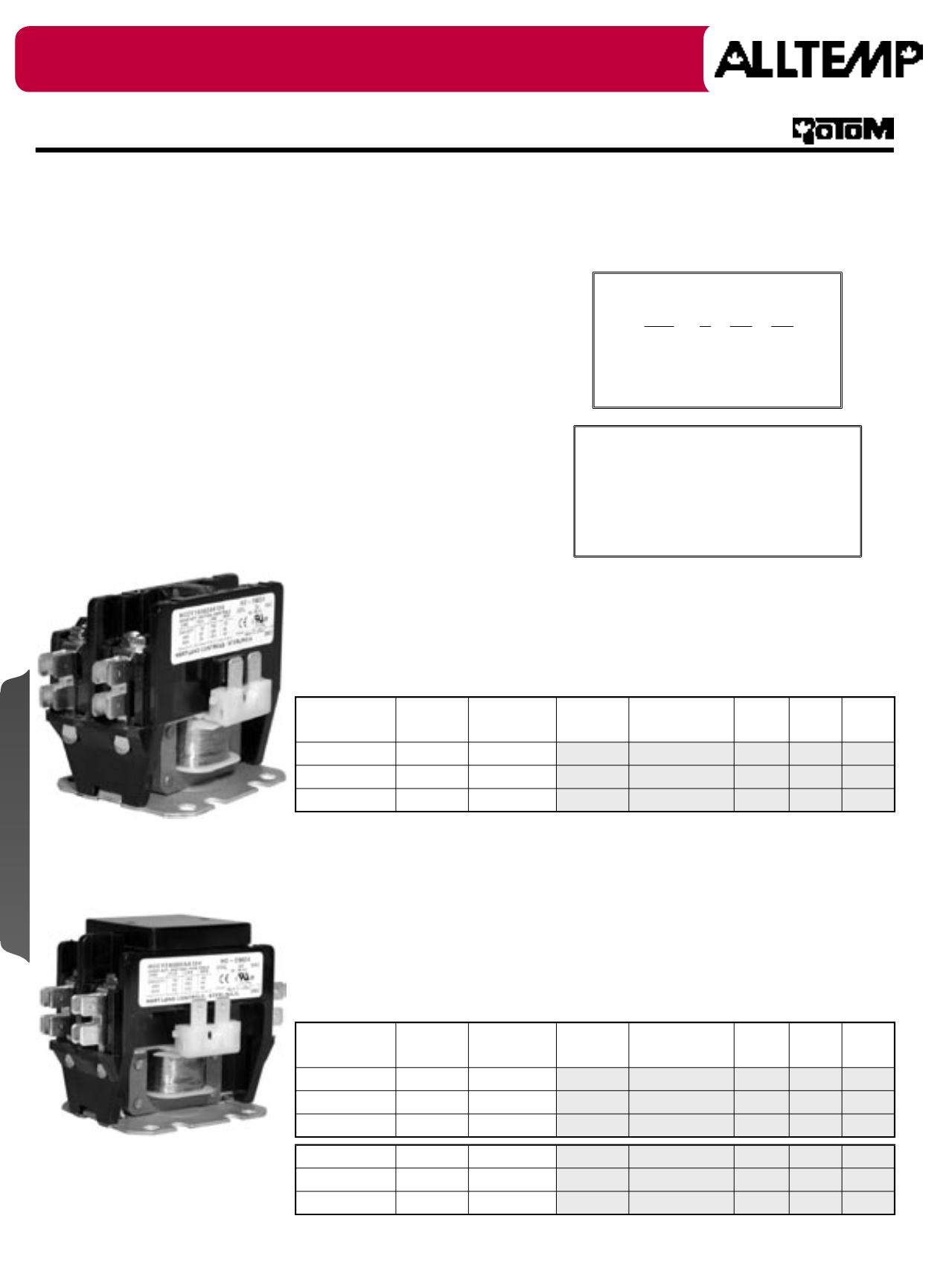

165
Electrical
One Pole Contactors
• One pole contactor with shunt
• UL cUL CE Approved
• 4 - 1/4" Brass Spade Terminals Per Power Connection
• #10-32 Combination Screw Terminals
• 50/ 60 Hz
Part #
Full Load
Amps.
Coil Voltage
50/60
Resistive
Amps.
Locked Rotor
Amps.@240V
Height Width Depth
HC-13024
30
24
40
180
2.38" 2.00" 3.29"
HC-130120
30
120
40
180
2.38" 2.00" 3.29"
HC-130240
30
208/240
40
180
2.38" 2.00" 3.29"
Two Pole Contactors
• UL cUL CE Approved
• 30 Amp.= 4 - 1/4" Brass Spade Terminals Per Power Connection
• 40 Amp.= 4 - 1/4" Copper Spade Terminals Per Power Connection
• 50/ 60 Hz
• Dust/Arc Cover Over Contacts (40 Amp Models & Up)
Part #
Full Load
Amps.
Coil Voltage
50/60
Resistive
Amps.
Locked Rotor
Amps.@240V
Height Width Depth
HC-23024
30
24
40
180
2.45" 2.06" 3.32"
HC-230120
30
120
40
180
2.45" 2.06" 3.32"
HC-230240
30
208/240
40
180
2.45" 2.06" 3.32"
HC-24024
40
24
50
240
2.63" 2.06" 3.32"
HC-240120
40
120
50
240
2.63" 2.06" 3.32"
HC-240240
40
208/240
50
240
2.63" 2.06" 3.32"
HC-13024
1 Pole Contactor With Shunt Illustrated
HC-23024
2 Pole Contactor Illustrated
Definite Purpose Magnetic Contactors
Contactor Nomenclature
HC - 1 30 24
HC
= Product Code
1
= Poles (1, 2, 3 or 4)
30
= Full Load Amps. (30A, 40A...)
24
= Coil Voltage (24, 120 or 240)
Contactor Terminal Types
• 30 Amp.
= #10-32 Combination Screw Terminals
• 40, 50 & 60 Amp.
= # 14-4 Compression Lug
Terminals with 1/4"-20 Screws
CustomTerminal Type Models Available Upon
Request!
FEATURES:
• Compact size.
• Quieter than traditional designs.
• Far more efficient operation.
• Universal electrical connections.
• Quick connect terminals.
• Universal galvanized mounting plates.
• Protective Dust arc cover
• Snap on auxiliary contacts.
• Individually packaged.
• Easy to understand part numbers.
• Complete cross reference.
• UL, CE & cUL approved.
• Price competitive.
Rotom Definite Purpose Magnetic Contactors
Contactors are designed to establish or interrupt a power circuit. Definite purpose contactors unlike general
purpose contactors are non-rebuildable electronic controls designed for specific application with clearly defined
operating conditions.
Typical Applications
• Heating
• Ventilation
• Air Conditioning
• Refrigeration
- Compressors
- Motors
• Agriculture
• Pool & Spa Controls
• Food Service Equipment
• Welding Equipment
• Business Machines
Contactors
