CONTROL PANELS
Three Phase, Duplex, Alternating
208/240/480 VAC
inches
(mm)
LISTED
C US

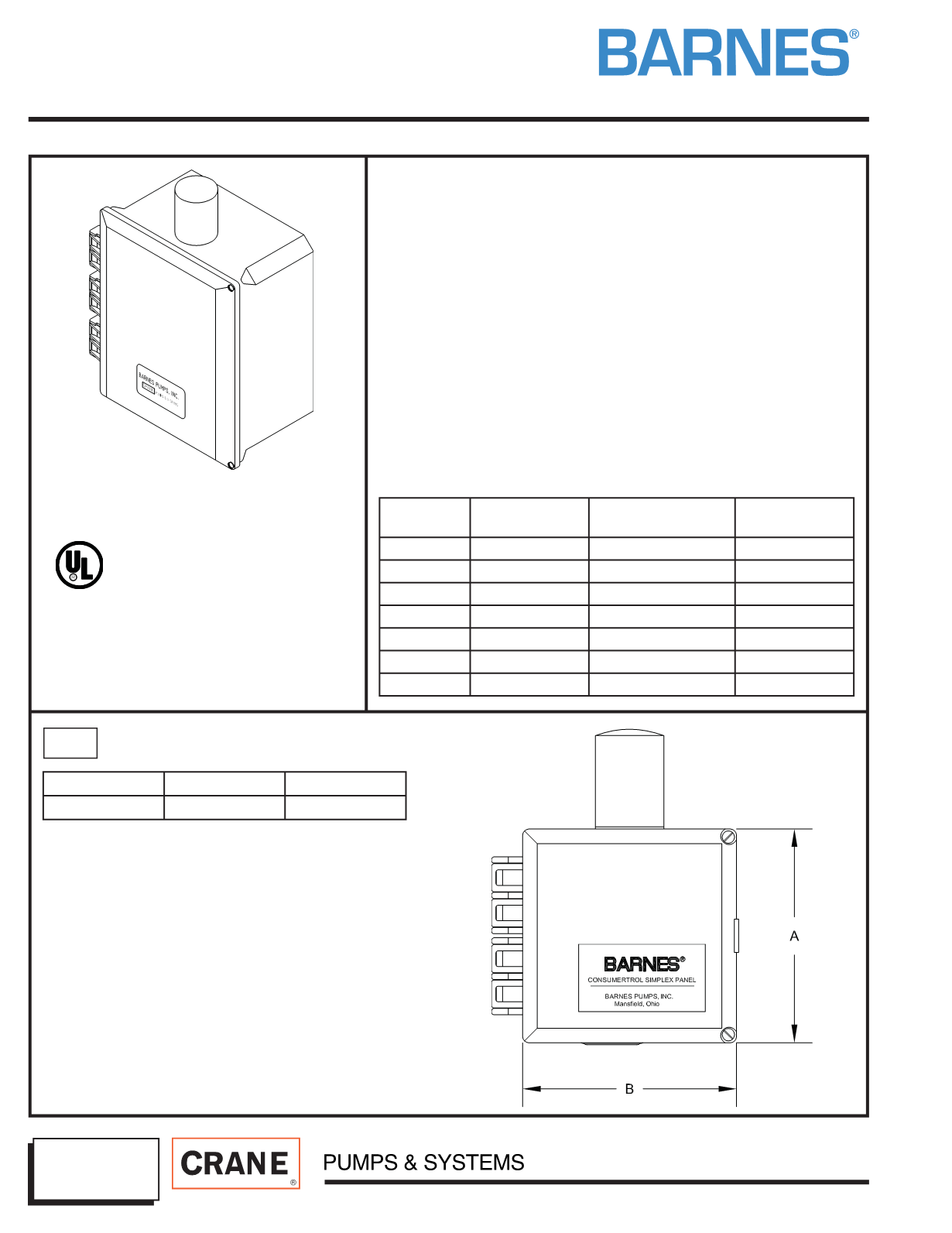

The Duplex controls are supplied in a NEMA 4X weathertight thermoplastic
enclosure with removable flanges for indoor/outdoor mounting. Each will
contain three pole, amperage rated magnetic motor contactors for pump
control and motor protection switches that provide for adjustable overloads,
built-in circuit breakers, and pump disconnects.
A multi-tap transformer for 208/240/480 VAC provides 120V control/alarm
voltage. Hand-off-automatic switches are provided for manual operation of
the pumps. Pump run, float status, and control/alarm power indicators are
provided as well as a control/alarm fuse and ON/OFF switch.
Terminal blocks are provided for customer connection of power, pump leads,
and level switches or other pilot controls. The alternating action equalizes
pump wear. In addition to the alternating pump control, this system provides
override control should either pump fail. The Alarm package includes a top
mounted red beacon for 360° visual checks and a horn for audio warning of
alarm conditions. A test-normal-silence switch is provided for testing of the
alarm and silencing of the horn. A horn silence relay automatically resets the
alarm horn after alarm condition has been resolved.
PART NO.
PUMP FULL
LOAD AMPS
CIRCUIT BREAKER CONTACTOR
106498
1 - 1.6
Intregal w/Protector
17 AMP
106500
1.6 - 2.5
Intregal w/Protector
17 AMP
106502
2.5 - 4.0
Intregal w/Protector
17 AMP
106504
4.0 - 6.3
Intregal w/Protector
17 AMP
106506
6 - 10
Intregal w/Protector
17 AMP
106507
9 - 14
Intregal w/Protector
17 AMP
106509
13 - 18
Intregal w/Protector
25 AMP
Series: Duplex
P/N: 106498 thru 106509
A - Height
B - Width
C - Depth
14 (356)
12 (305)
6 (152)
