SECTION
PAGE
DATE
Panels & Controls
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
2
E
Professional Plumbing
CONTROL PANELS
Single Phase, Duplex, Alternating
120/208/240 VAC
4/04
inches
(mm)
Series: Duplex
P/N: 106483 thru 106485
LISTED
C US

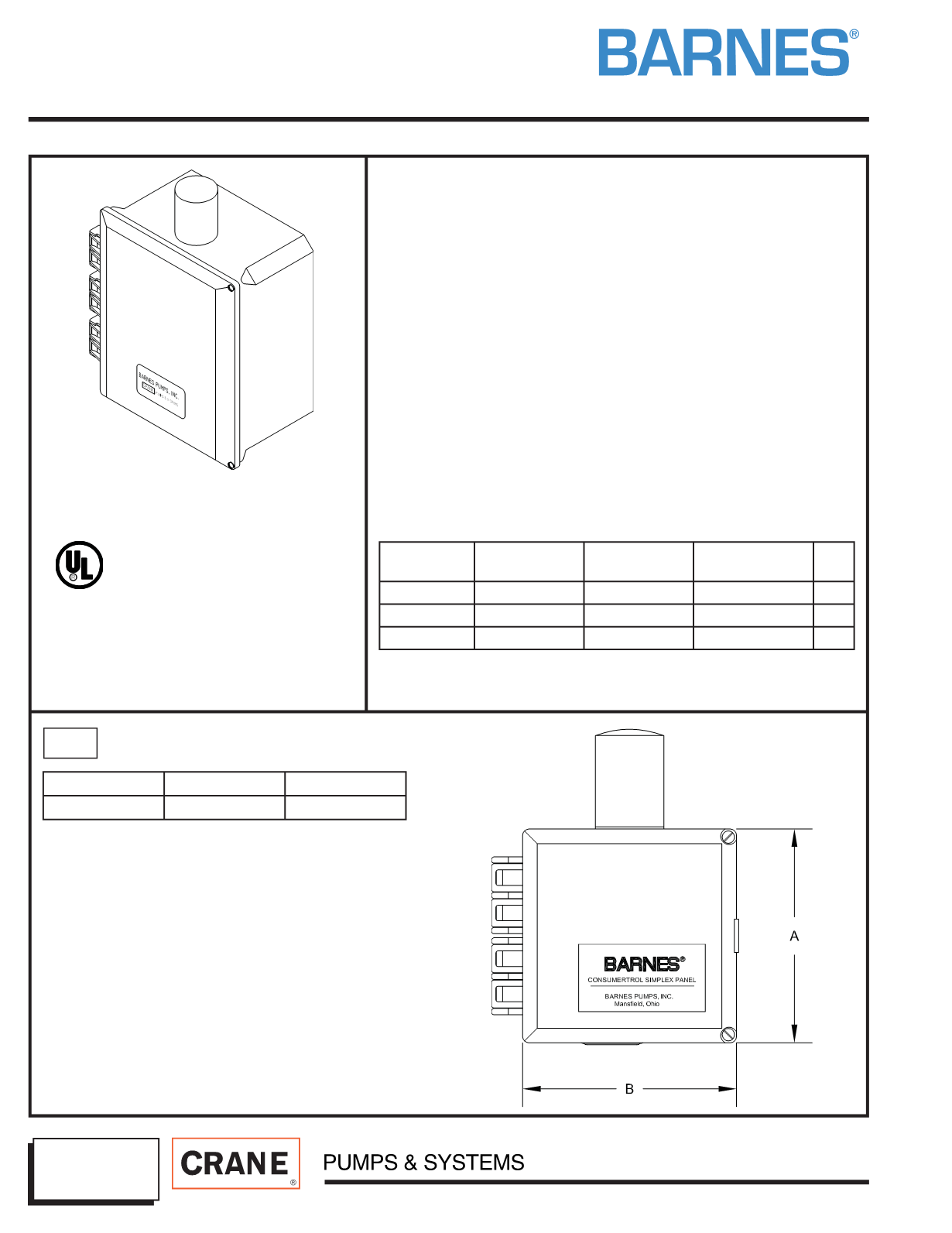

The Duplex controls are supplied in a NEMA 4X weathertight
thermoplastic enclosure with removable mounting flanges for
indoor/outdoor mounting. Each will contain two pole, amperage rated
magnetic motor contactors for pump control and circuit breakers for
pump disconnects and branch circuit protection. Hand-off-automatic
switches are provided for manual operation of the pumps. Pump run,
float status, and control/alarm power indicators are provided as well
as a control/alarm fuse and on/off switch.
Terminal blocks are provided for customer connection of power,
pump leads, and level switches or other pilot controls.The alternating
action equalizes pump wear. In addition to the alternating pump
control, this system provides override control should either pump fail.
The Alarm package includes a top mounted red beacon for 360°
visual checks and a horn for audio warning of alarm conditions. A
test-normal-silence switch is provided for testing of the alarm and
silencing of the horn. A horn silence relay automatically resets the
alarm horn after alarm condition has been resolved.
PART NO.
PUMP FULL
LOAD AMPS
CIRCUIT
BREAKER
CONTACTOR PH
106483
0 - 7
2 Pole, 15 Amp 2 Pole, 25 Amp 1
106484
7 - 15
2 Pole, 20 Amp 2 Pole, 25 Amp 1
106485
15 - 20
2 Pole, 30 Amp 2 Pole, 25 Amp 1
A - Height
B - Width
C - Depth
12 (305)
10 (254)
6 (152)
