USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Panels & Controls
11
E
Professional Plumbing

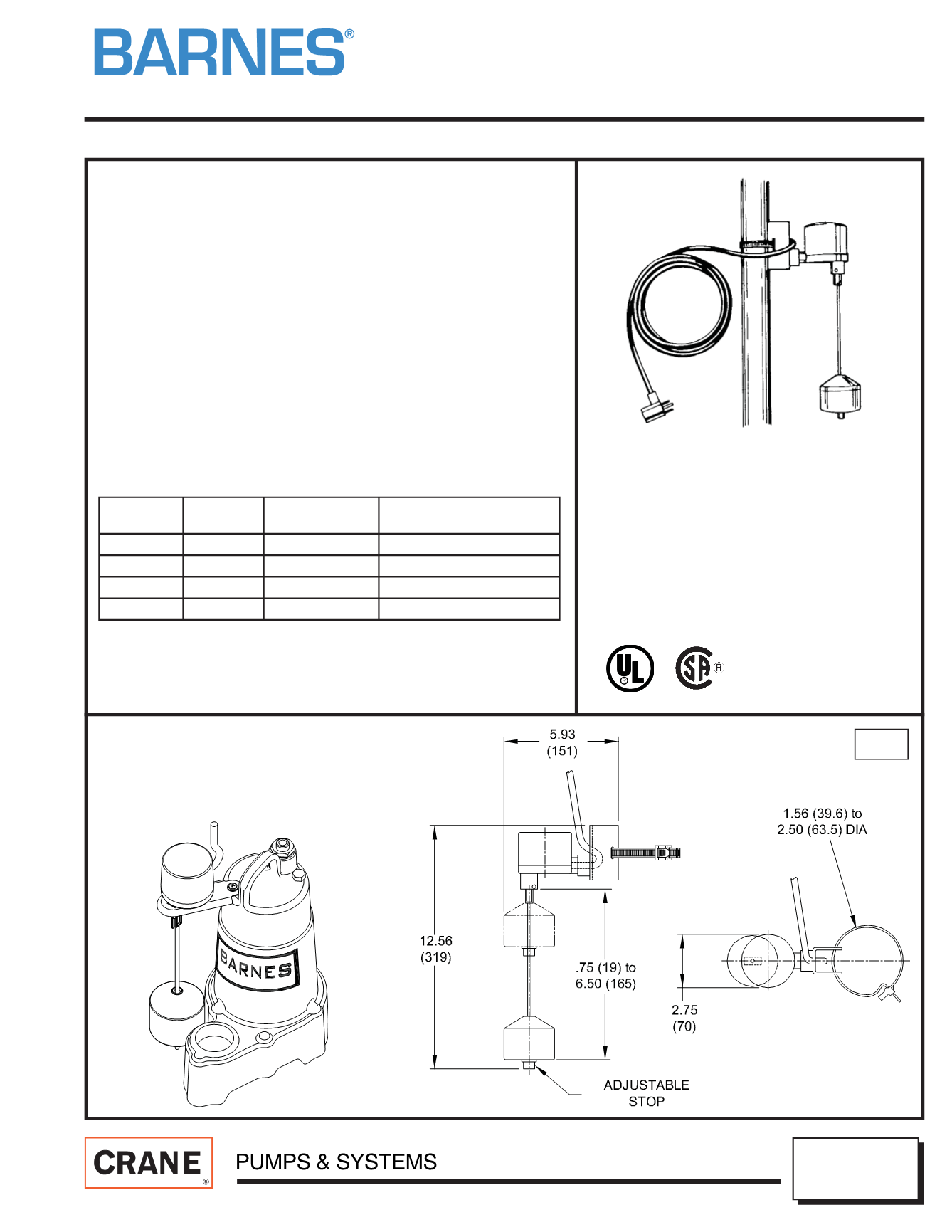

LEVEL CONTROLS
Vertical Float, 120 & 230 Volt,
w/Piggy-Back Plug
4/04
P/N's:
093474
093475
113647
inches
(mm)
CORD:
Material
..............
16-2 SJOW Water-resistant.
Size
....................
.32 Dia. (8mm) x 15ft. (5M) Long. with Piggy-Back
Plug
SWITCH & HOUSING................
Impact resistant, PVC
FLOAT STOP ...........................
Neoprene
LIFT ROD
...........................
Injection Molded Acetal Plastic.
MOUNTING BRACKET .............
PVC
CLAMP.......................................
Plastic
TEMPERATURE RATING:.........
125°F (52°C)
SWITCH .....................................
Snap Acon
SWITCH RATING.......................
120 Volt, 13 AMPS Max. Running Current
230 Volt, 12 AMPS Max. Running Current
60 AMPS Max. Starting Current
1/2HP @ 115 Volts AC, 1HP @ 230 Volts AC
PUMPING RANGE:....................
Adjustable, 3/4 (19mm) to 6-1/2 (165mm).
The Vertical Level Control is designed to operate in applications with limited space
and is available in pump down model only. The Vertical Level Control is not
sensitive to turbulence. The plug may be removed for direct wiring and may be used
in either 120V or 230V applications within specified amp range.
PART
NUMBER
VOLTS
CORD
LENGTH
INSTALLATION
093474
120
15 ft. (5m)
Pipe Mounted
093475
230
15 ft. (5m)
Pipe Mounted
113647*
120
10 ft. (3m)
SP Pump Bracket Mount
113647A*
120
20 ft. (6m)
SP Pump Bracket Mount
IMPORTANT!
1. This Level Control must be used only with pumps equipped with integral thermal
overload protection.
(*) Includes SP Pump mounting bracket.
With Pump Bracket Mount
P/N: 113647 & 113647A
Pipe Mounted
P/N: 093474 & 093475
